Breakout Board - 10-pin Header Pitch Converter
Breakout Board - 10-pin Header Pitch Converter
Breakout Board - 10-pin Header Pitch Converter
$999
$0
Pitch conversion between multiple low profile connectors
Designed for direct interface with the Saleae Digital Probe
Technical Specifications

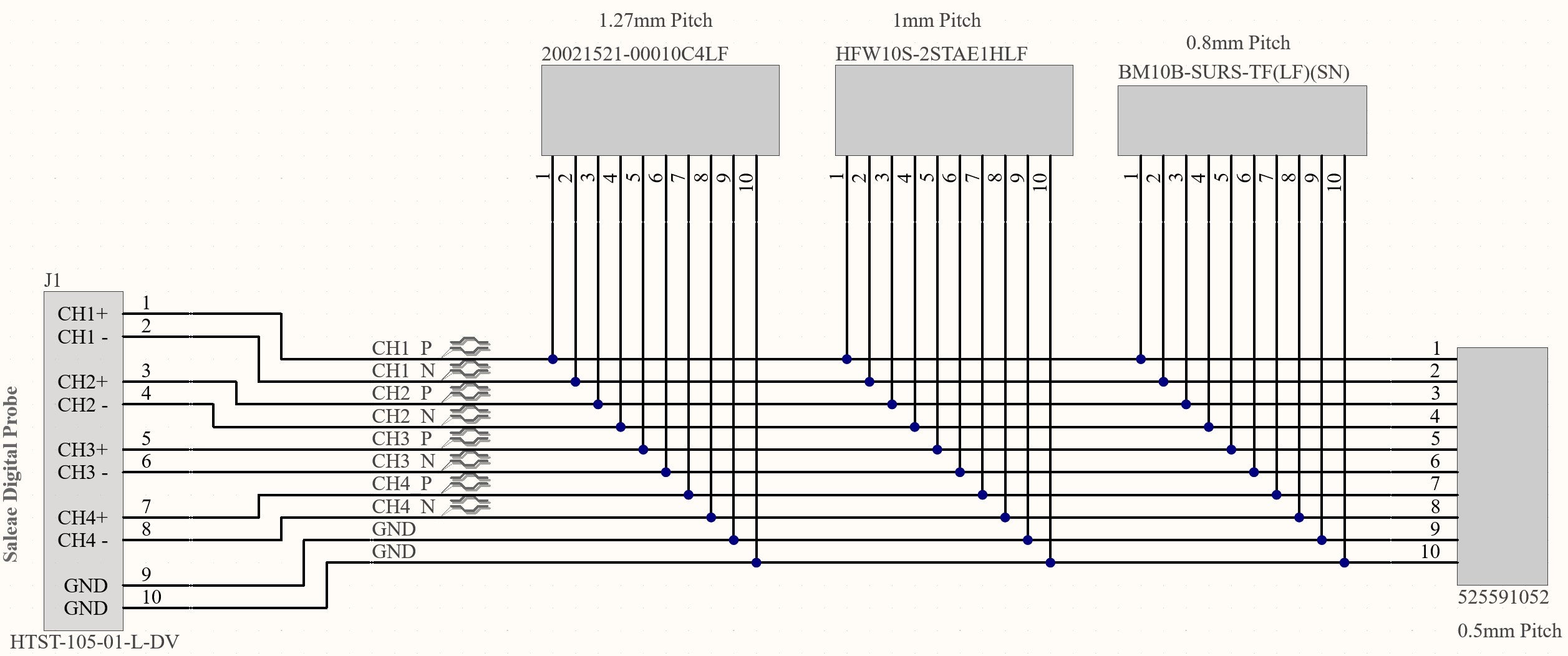

Header for Saleae Differential Digital Probe
1X 10 Position 1.27mm Pitch 2X5 Header
1X 10 Position 1mm Pitch (Mates with standard 1mm FFC, FPC)
1X 10 Position 0.8mm Pitch (Mates with A10SUR10SUR32W51A or similar)
1X 10 Position 0.5mm Pitch (Mates with 150200115 or similar 0.5mm FFC, FPC)
What's Included
Adapter Board PCBA
Warranty
The 3-year warranty always applies, regardless of where you purchased the product. All warranty replacements and repairs are handled directly by us. There is no need to contact the distributor where you purchased it. Also, you don't need the original receipt. As long as you have the unit, we can repair or replace it under warranty. Also, if you can't remember when you purchased the unit or if the 3-year window has already closed, please contact us anyway in case we can help.
Support
From help with placing an order to the most obscure technical question, we’re here to help. Your technical questions are answered by EEs and CSEs with a deep knowledge of our hardware, software, and embedded applications. Plus, we're friendly!
Shipping
Saleae products typically ship FedEx 2 day world-wide. The cost is fixed based on the final destination and added to the cart at checkout.
